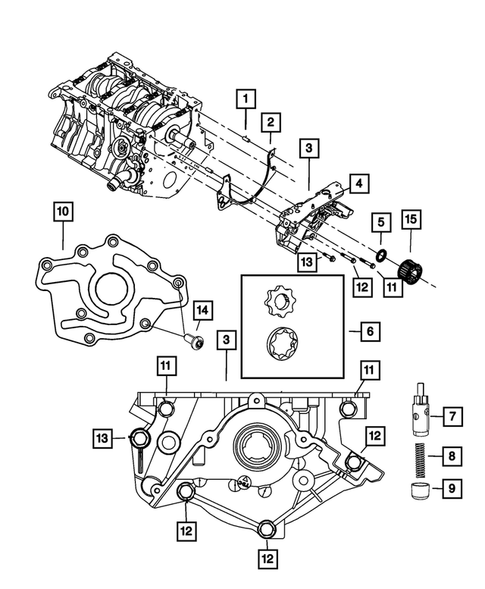

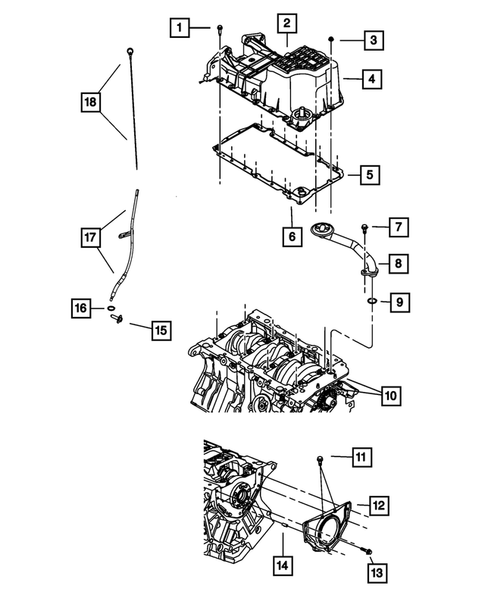

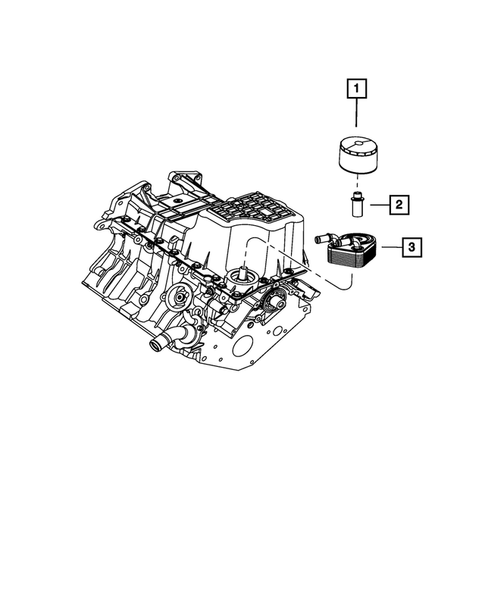

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2008 Dodge Nitro
No.
Part # / Description / Price
Price
1
Hex Flange Head Bolt, Mounting
Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X40.00. Front Exhaust Pipe To Exhaust Manifold/Converter
MSRP $4.80
$3.31
MSRP $4.80
$3.31
2
Oil Drain Plug Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
MSRP $15.85
$11.02
MSRP $15.85
$11.02
3
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.7L V6 ENGINE. 4.0L V6 SOHC ENGINE. ALL TURBO DIESEL ENGINES. ALL V6 ENGINES. Transmissions: 6-SPEED MANUAL NSG370 TRANSMISSION. All Manual Transmissions.
Description: M8x1.25x8.0. Park Brake Lever to Park Brake Sled
MSRP $4.20
$2.90
MSRP $4.20
$2.90
4
Oil Filter Connector Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: 3/4-16. See Note. [3/4-16] With Engine Production Part Number 04892603AA Or 04892480AA
MSRP $16.45
$11.31
MSRP $16.45
$11.31
5
MSRP $88.45
$60.31
7
Hex Head Locking Bolt, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X25.25. Engine Oil Pick Up Tube To Engine Oil Pump
MSRP $11.00
$7.60
MSRP $11.00
$7.60
10
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X35.00. Oil Pump Back Cover To Oil Pump Body
11
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M6X1.00X23.00. Oil Pan To Rear Retainer
12
Crankshaft Rear Oil Seal Retainer Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: See note. After build date TDDE92373XXXXX, One Piece Assembly
13
Torx Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M6X1.00X17.00. Crankshaft Rear Oil Seal retainer To Cylinder Block
14
Dowel Pin, Mounting, Upper Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE. ALL V6 ENGINES. Transmissions: 4-SPD. AUTOMATIC VLP 42RLE TRANS.
Description: Oil Pan To Cylinder Block
MSRP $8.75
$5.97
MSRP $8.75
$5.97
15
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M5.74X1.81X21.50. Oil level Indicator Tube To Cylinder Block
MSRP $3.40
$2.26
MSRP $3.40
$2.26
18
MSRP $34.75
$23.90
No.
Part # / Description / Price
Price
2
Oil Pump Gasket Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Build Date Codes Are listed On Intake Plenum Tag. After Build Date TDDE92373XXXXX
MSRP $20.60
$14.15
MSRP $20.60
$14.15
3
Engine Oil Pump Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Includes Rotor Set, Plunger, Spring, Cap, Back Cover And Body
4
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X35.00. Oil Pump Back Cover To Oil Pump Body
5
Crankshaft Oil Seal Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Front
MSRP $26.25
$18.27
MSRP $26.25
$18.27
11
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X55.00. Oil Pump Body To Cylinder Block
12
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8X1.25X35.00. Primary Tensioner Arm To Cylinder Block
MSRP $9.30
$6.44
MSRP $9.30
$6.44
13
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M10X1.50X70.00. Oil Pump Body To Cylinder Block
14
Torx Head Screw, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M6x1.00x15.00. Oil Pump Cover To Timing Cove[M6x1.00x15.00]
No.
Part # / Description / Price
Price
1
Engine Oil Filter Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: See Note. [3/4-16] With Engine Production Part Number 04892603AA Or 04892480AA
MSRP $11.15
$7.71
MSRP $11.15
$7.71
